Down The Hole RC Hammers & Bits

Share to:
Our reverse circulation hammers are specifically designed for all kinds of exploration drilling (deep hole and in-pit grade control applications).
  • RE531 RE035 RE540 RE004 RE542 RE543 etc
  • Atlas Copco Sandvik
  • Reverse Circulation Drilling Accessories
  • Reverse Circulation Hammers; Reverse Circulation Button Bits
Availability:
Hammer Structure
Connection Types: Blank, Drillstar, Metzke, Remet, Metzke/Remet , Drillcorp.

Connection Size: 33’’=30; 3 1/2’’=35; 4’’=40; 4 1/2’’=45


Bits Structure
Hammer Models: RE531 RE542/543 RE035 RE540 RE040 RE545 RE547 RE052 RE054
Face Types: Cross Flow; Drop Centre; Hard Formation; Hard Formation Deviation Control; Ballis-tic


Hole-RC01


Our reverse circulation hammers are specifically designed for all kinds of exploration drilling (deep hole and in-pit grade control applications). Whether you are exploring potential sites or working an existing mine, the China KING-LONG RC hammer will guarantee high performance, exceptional reliability and dependable support


Hole-RC02


KING-LONG RC hammers

are essentially the same as conventional DTH hammers, but with an inner-tube that runs through the centre of the entire hammer.


• The cuttings are collected in the holes in the front of the bit and confined and transported in the inner-tube.
• The flushing is in-between the splines of the bit and the chuck.
• The inner-tube is a wearing component and is replaced easily through the top of the hammer.
• In all RC hammers the inner-tube assembly can be removed without removing the backhead.


Hole-RC03

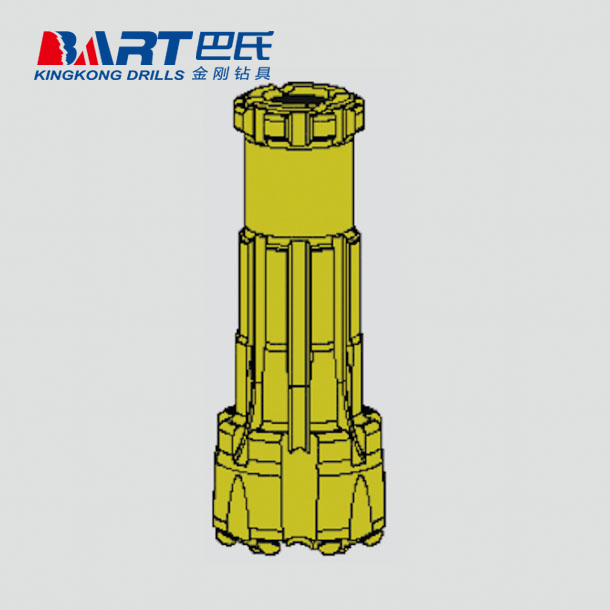

Reverse Circulation Drilling Button Bits

Model            Bit Diameter mm(in)
RE531            86-102 (3 3/8-4)
RE035            86-102 (3 3/8-4)
RE540            111-121 (4 3/8- 4 3/4)
RE004            114-121 (4 1/2- 5 3/4)
RE542            114-133 ( 4 1/2- 5 1/4)
RE545            123-140 ( 4 7/8-5 1/2 )
RE040            127-137 ( 5-5 1/2)
RE052            133-143 ( 5 1/4-5 5/8)
RE547            133-146 ( 5 1/4-5 3/4)
RE054            137-146 ( 5 3/8-3/4)
RE140            137-146 ( 5 3/8-5 3/4)


Hole-RC6Hole-RC7


Various Different Size and Different Quality Requirement

A. Flexible Supplying Plan to make your purchasing much more fun than before.
B. Never Ever fast response to every customer saving your precious time for ever.

C. Special Order proceed in advance without down payment give you 100% confidence and trust care.
D. We accept customer tailer-made order based on samples or drawings.
