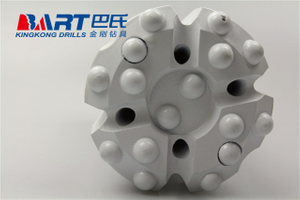

Face design:
A.Flat face design: For Drilling in a medium-hard to hard and abrasive rocks.
B.Concave design: The all-round application bit specifically designed for medium hard and homogeneous rock formations.
Excellent hole deviation control and flushing volume.
C.Convex design:Bit design with excellent flushing volume. For drilling at high penetration rates in non-abrasive rock.
Blasthole drilling
Production drilling of blastholes in quarries and mines.
There are four main types of blastholes:
Production holes
Pre-split holes
Buffer holes
Production holes underground
Well drilling
There are two main purposes for well drilling:
Waterwells
Geothermal wells
The required depth and size of the wells varies geographically due to pump standards and geology.
Down-the-hole bits
We offer a comprehensive range of DTH drill bits to match all conceivable applications. Each bit is made from quality alloy steel, and has been precision machined to produce a perfect body, heat treated to the required hardness, given surface compression for fatigue resistance, and fitted with precision buttons manufactured in-house.
DTH Bits for Shank Hammer Model With/Without Foot Valve
Ingersoll-Rand
A.DHD3.5 Bits Dia: 90mm-102mm.
B.DHD340 Bit Dia: 105mm-127mm.
C.DHD350 Bit Dia: 133mm-152mm.
D.DHD360 Bit Dia: 152mm-216mm.
E.DHD380 Bit Dia: 203mm-254mm.
F.QL40 Bit Dia: 105mm-127mm.
G.QL50 Bit Dia: 133mm-152mm.
H.QL60 Bit Dia: 152mm-216mm.
I.QL80 Bit Dia: 203mm-254mm.
Sandvik Hammer Model
A.SD4 Bit Dia: 105mm-127mm.
B.SD5 Bit Dia: 133mm-152mm.
C.SD6 Bit Dia: 152mm-216mm.
D.SD8 Bit Dia: 203mm-254mm.
Atlas Hammer Model
A.COP32 Bit Dia: 90mm-102mm.
B.COP42 Bit Dia: 105mm-127mm.
