In order to make best effort to be the cost-effective leader for the drilling industry, we have a complete line of fast penetration and rock pulverization thread drill bits for the worldwide drilling industry. Our thread button bit are suitable for rock drilling, water well, quarries, open pit and underground mining, construction, and blasting and so on.
Advantage | Button bit made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas. |
Material | Alloy steel bar and tungsten carbide bit |
MOQ | No MOQ required for testing and trial order |
Body Type | Normal and Retrac type |
Thread type | R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60 |
Diameter | 32mm-152mm |
Button bit shape | Spherical and Ballistic |
Face shape | Flat shape, Drop-center shape |
Thread button/drill bit features:
1. The threaded drill bit are equipped with the hydraulic drilling jumbo and used for crush rock ,and it is widely used in tunnel construction, large scale mine(open and underground )and large section tunnel advance in metal mine.
2. Our threaded button bit is made by best quality alloy steel bar and tungsten carbide ,through heat treatment like Atlas, it includes R25,R28,R32,R35,R38,T45,T51,ST58,HT60,ST68 and so on. And the head diameter range from 35mm to 127mm.
3. Our special technology develops the sharpest ball tooth, and the bits with sharp buttons are suitable for hard and mid -hard rock, and it also have excellent wear resistance and driving speed.The bits with round buttons are widely used in hard rock ,with the advantage of high abrasion and impact resistance.
How to choose the suitable thread button bit?
R25 (1") SERIES (Recommended bit diameter Dia.33~Dia.45)
R28 (1 1/8") SERIES (Recommended bit diameter Dia.37~Dia.45)
R32 (1 1/4") SERIES (Recommended bit diameter Dia.41~Dia.64)
R35 (1 3/8") SERIES (Recommended bit diameter Dia.48~Dia.64)
T38 (1 1/2") SERIES (Recommended bit diameter Dia.64~Dia.102)
T45 (1 3/4") SERIES (Recommended bit diameter Dia.70~Dia.115)
T51 (2") SERIES (Recommended bit diameter Dia.89~Dia.127)
GT60 SERIES (Recommended bit diameter Dia.92~Dia.152)
We can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

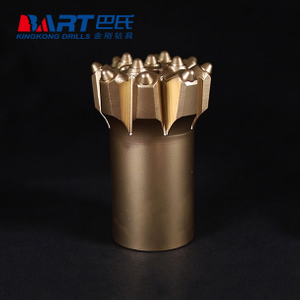

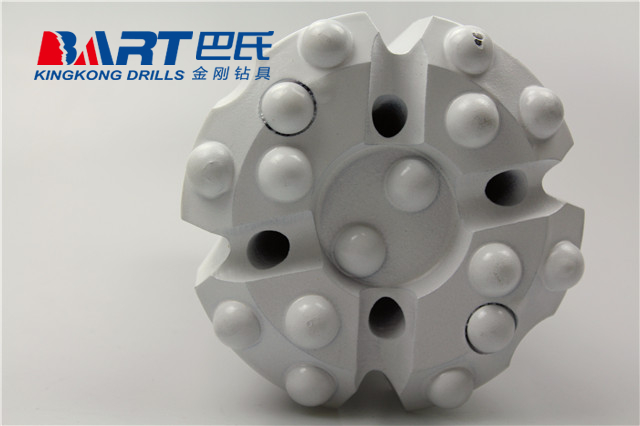

Picutre of Thread button bits
Test results
Our drilling bit can be used in different situations and different type stones.
We also can customize the drill button bit according to your rock ingredient.
Information need to know before ordering
4. Carbide/Button: Spherical or Ballistic
Contact Amy Zhang for more details
Email: amy@kingkongdrills.com
Mobile: +86 13907256175 (Wechat/Whatsapp/Skype)
